| Description |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cut
|
| Summary |

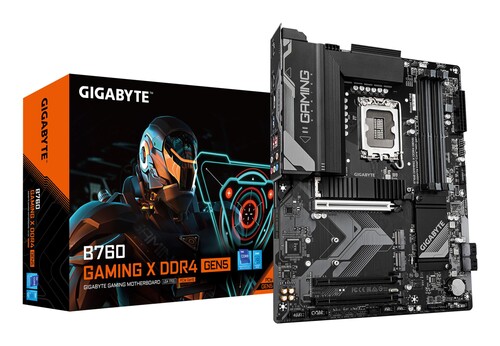

GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, I
|
| Unit Calculated Volume |
0.00748 cubm
|
| Procesora ligzda |
LGA 1700
|
| Unit Calculated Weight |
1.8 kg
|
| Compatibility |
Intel B760
|
| Width |
305 mm
|
| Audio Chip |
Realtek ALC897
|
| Battery weight |
3 g
|
| Форм фактор |
ATX
|
| Component for |
PC
|
| Motherboard chipset |
Intel B760
|
| Motherboard chipset family |
Intel
|
| Motherboard form factor |
ATX
|
| Windows operating systems supported |
Windows 10 x64/Windows 11 x64
|
| Compatible processor series |
Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
|
| Processor manufacturer |
Intel
|
| Тип устройства |
LGA 1700
|
| PC health monitoring |
Fan/Temperature/Voltage/Water cooling
|
| Supported processor sockets |
LGA 1700
|
| Supported RAM Technology |
DDR4-SDRAM
|
| ECC сompatibility |
ECC & Non-ECC
|
| Maximum internal memory |
128 GB
|
| Memory channels |
Dual-channel
|
| Memory Slots Type |
DIMM
|
| Number of memory slots |
4
|
| Supported memory clock speed (max) |
5333 MHz
|
| Power source type |
ATX
|
| Supported memory clock speeds |
2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
|
| Supported memory types |
DDR4-SDRAM
|
| Maximum internal memory supported by processor |
128 GB
|
| Number of HDDs Supported |
4
|
| Number of storage drives supported |
7
|
| Raid Levels |
0/1/10/5
|
| RAID support |
Yes
|
| Unbuffered memory |
Yes
|
| Supported storage drive interfaces |
M.2,PCI Express 4.0,SATA III
|
| Supported storage drive types |
HDD & SSD
|
| Battery type |
CR2032
|
| Ethernet LAN (RJ-45) ports |
1
|
| Maximum internal memory per slot |
32 GB
|
| ATX Power connector (24-pin) |
Yes
|
| HDMI ports quantity |
1
|
| DirectX version |
12.0
|
| Maximum Resolution |
4096 x 2304 pixels
|
| EPS power connector (8-pin) |
Yes
|
| Parallel processing technology support |
Not supported
|
| HDMI version |
2.1
|
| Number of EPS power connectors (8-pin) |
1
|
| Headphone outputs |
1
|
| Number of SATA III connectors |
4
|
| USB 2.0 connectors |
2
|
| CPU fan connector |
Yes
|
| USB 2.0 ports quantity |
5
|
| Front panel audio connector |
Yes
|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2
|
| Front panel connector |
Yes
|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1
|
| Audio output channels |
7.1 channels
|
| Number of chassis fan connectors |
4
|
| DisplayPort version |
1.2
|
| Cooling Type |
Passive
|
| DisplayPorts quantity |
1
|
| Desktop Management Interface (DMI) version |
2.7
|
| RGB LED pin header |
Yes
|
| Number of battery cells |
1
|
| TPM connector |
Yes
|
| Ethernet LAN |
Yes
|
| Ethernet interface type |
2.5 Gigabit Ethernet
|
| Wi-Fi |
No
|
| Product colour |
Dark brown
|
| Number of CPU fan connectors |
2
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity |
1
|
| 1st M.2 highest PCI Express generation |
4.0
|
| Products per shipping (inner) case |
1 pc(s)
|
| Number of RGB LED pin headers |
4
|
| 1st M.2 largest key size |
22110
|
| 2nd M.2 highest PCI Express generation |
4.0
|
| 2nd M.2 largest key size |
22110
|
| Number of water pump connectors |
2
|
| HDCP |
Yes
|
| 3rd M.2 highest PCI Express generation |
4.0
|
| 3rd M.2 largest key size |
22110
|
| Serial port headers |
1
|
| Number of M.2 (M) slots |
3
|
| LAN controller |
Realtek RTL8125
|
| PCI Express x16 (Gen 5.x) slots |
1
|
| ACPI version |
5.0
|
| BIOS memory size |
256 Mbit
|
| BIOS Type |
UEFI AMI
|
| System Management BIOS (SMBIOS) version |
2.7
|
| PCI Express x16 (Gen 3.x) slots |
2
|
| Clear CMOS jumper |
Yes
|
| Country of origin |
China
|
| Package depth |
270 mm
|
| Package height |
80 mm
|
| Package weight |
1800 g
|
| Package width |
335 mm
|
| Lithium weight per battery |
0.07 g
|
| Bundled software |
Norton® Internet Security (OEM version)
|
| Warranty period |
3 year(s)
|
| Battery Technology |
Lithium-Manganese Dioxide (LiMnO2)
|
| S/PDIF out connector |
Yes
|
| Screws included |
Yes
|
| Batteries Included |
Yes
|
| Line-in |
Yes
|
