Тех. характеристики
| Model number |
U9-285K
|
| Efficient-core boost frequency |
4.6 GHz
|
| Summary |

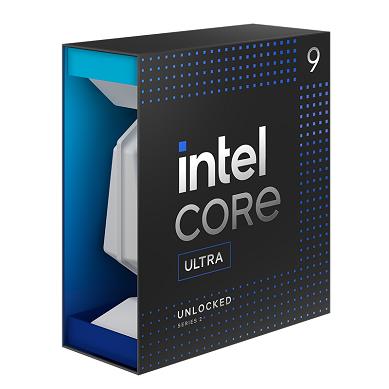

Intel Core Ultra 9 285K. Processor family: Intel Core Ultra 9, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 36 TOPs. Memory channels: Dual-channel, Maximum internal memory
|
| Units per Shipping Box |
5
|
| L2 cache |
40960 KB
|
| Unit Calculated Volume |
0.0020452 cubm
|
| Тип устройства |
LGA 1851 (Socket V1)
|
| Efficient-core base frequency |
3.2 GHz
|
| Unit Calculated Weight |
0.37 kg
|
| CPU Family name |
Intel Core Ultra
|
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1
|
| Maximum number of DMI lanes |
8
|
| Harmonized System (HS) code |
8542310050
|
| AI software frameworks supported by CPU |
DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
|
| Processor Threads |
24
|
| Processor generation |
Intel Core Ultra (Series 2)
|
| Processor boost frequency |
5.7 GHz
|
| Performance-core base frequency |
3.7 GHz
|
| Cooler included |
No
|
| Performance-core boost frequency |
5.5 GHz
|
| Processor ARK ID |
241060
|
| Processor cache |
36 1. Quick guide2. Driver CD
|
| Processor cache type |
Smart Cache
|
| Processor codename |
Arrow Lake
|
| Market segment |
Desktop
|
| On-board graphics card base frequency |
300 MHz
|
| NPU performance up to |
13 TOPs
|
| Total processor performance up to |
36 TOPs
|
| Maximum internal memory |
192 GB
|
| Processor operating modes |
64-bit
|
| Direct Media Interface (DMI) Revision |
4.0
|
| Processor manufacturer |
Intel
|
| Maximum number of PCI Express lanes |
24
|
| Scalability |
1S
|
| ECC |
Yes
|
| Number of displays supported (on-board graphics) |
4
|
| Intel® Turbo Boost Technology |
2.0
|
| Maximum operating temperature |
105 °C
|
| Maximum internal memory supported by processor |
192 GB
|
| Processor base power |
125 W
|
| Memory channels |
Dual-channel
|
| On-board graphics card DirectX version |
12.0
|
| Memory clock speeds supported by processor |
6400 MHz
|
| On-board graphics card dynamic frequency (max) |
2000 MHz
|
| Discrete graphics card |
No
|
| Maximum turbo power |
250 W
|
| Memory types supported by processor |
DDR5-SDRAM
|
| Discrete graphics card model |
Not available
|
| On-board graphics card OpenGL version |
4.5
|
| On-board graphics card |
Yes
|
| On-board graphics card refresh rate at maximum resolution (DisplayPort) |
60 Hz
|
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) |
60 Hz
|
| Stepping |
B0
|
| On-board graphics card refresh rate at maximum resolution (HDMI) |
60 Hz
|
| Xe-cores |
4
|
| On-board graphics card model |
Intel® Graphics
|
| Export Control Classification Number (ECCN) |
5A992C
|
| Efficient cores |
16
|
| PCI Express slots version |
4.0/5.0
|
| Neural Processor Unit (NPU) |
Intel AI Boost
|
| Supported instruction sets |
AVX 2.0/SSE4.1/SSE4.2
|
| Intel® Thermal Velocity Boost Frequency |
5.7 GHz
|
| Performance cores |
8
|
| Intel® Turbo Boost Max Technology 3.0 frequency |
5.6 GHz
|
| Processor cores |
24
|
| AI Software Frameworks Supported By NPU |
DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
|
| GPU performance up to |
8 TOPs
|
| Processor family |
Intel Core Ultra 9
|
| Processor model |
285K
|
| Memory speed (max) |
6400 MHz
|
| Sparsity Support |
Yes
|
| OpenCL version |
3.0
|
| Windows Studio Effects Support |
Yes
|
| On-board graphics card ID |
0x7D67
|
| Package Type |
Box
|
| On-board graphics card outputs supported |
DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
|
| Embedded options available |
No
|
| Execute Disable Bit |
Yes
|
| Idle States |
Yes
|
| Thermal Monitoring Technologies |
Yes
|
| Thermal solution specification |
PCG 2020A
|
| Use conditions |
PC/Client/Tablet/Workstation
|
| Enhanced Intel SpeedStep Technology |
Yes
|
| Intel 64 |
Yes
|
| Intel® Thunderbolt 4 |
Yes
|
| Intel Trusted Execution Technology |
Yes
|
| Intel Virtualization Technology (VT-x) |
Yes
|
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes
|
| Intel vPro® Enterprise Platform Eligibility |
Yes
|
| Intel Turbo Boost Max Technology 3.0 |
Yes
|
| Intel VT-x with Extended Page Tables (EPT) |
Yes
|
| Intel® Active Management Technology (Intel® AMT) |
Yes
|
| Intel® AES New Instructions (Intel® AES-NI) |
Yes
|
| Intel® Boot Guard |
Yes
|
| Intel® Control-flow Enforcement Technology (CET) |
Yes
|
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes
|
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU |
Yes
|
| Intel® One-Click Recovery |
Yes
|
| Intel® OS Guard |
Yes
|
| Intel® Quick Sync Video Technology |
Yes
|
| Intel® Remote Platform Erase (RPE) |
Yes
|
| Intel® Secure Key |
Yes
|
| Intel® Speed Shift Technology |
Yes
|
| Intel® Hardware Shield Eligibility |
Yes
|
| Intel® Stable IT Platform Program (SIPP) |
Yes
|
| Intel® Standard Manageability (ISM) |
Yes
|
| Intel® Thread Director |
Yes
|
| Intel® Threat Detection Technology (TDT) |
Yes
|
| Intel® Total Memory Encryption - Multi Key |
Yes
|
| Intel® Virtualization Technology with Redirect Protection (VT-rp) |
Yes
|
| Intel® Thermal Velocity Boost |
Yes
|
| Intel® Volume Management Device (VMD) |
Yes
|
| Mode-based Execute Control (MBE) |
Yes
|
| Launch date |
Q4'24
|
| Status |
Launched
|
| Graphics output |
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
|
