| Description |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edg
|
| Summary |

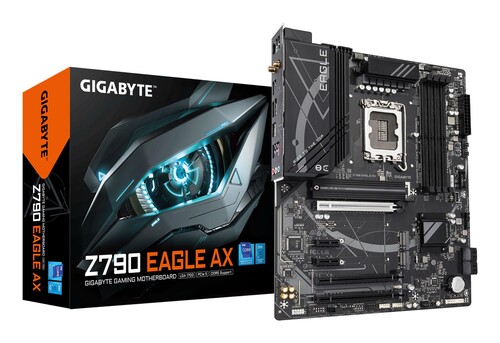

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Su
|
| Unit Calculated Volume |
0.009973 cubm
|
| Procesora ligzda |
LGA 1700
|
| Unit Calculated Weight |
1.84 kg
|
| Chipset Type |
Intel Z790 Express
|
| Microphone in |
Yes
|
| Width |
305 mm
|
| Battery weight |
3 g
|
| Audio Chip |
Realtek ALC897
|
| Form Factor |
ATX
|
| Component for |
PC
|
| Motherboard chipset |
Intel Z790 Express
|
| Bluetooth |
Yes
|
| Motherboard chipset family |
Intel
|
| Motherboard form factor |
ATX
|
| Units per Shipping Box |
8
|
| Windows operating systems supported |
Windows 10 x64/Windows 11 x64
|
| Compatible processor series |
Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
|
| Processor manufacturer |
Intel
|
| Processor Socket |
LGA 1700
|
| PC health monitoring |
Fan/Temperature/Voltage/Water cooling
|
| Supported processor sockets |
LGA 1700
|
| ECC сompatibility |
ECC & Non-ECC
|
| Supported RAM Technology |
DDR5-SDRAM
|
| Maximum internal memory |
192 GB
|
| Maximum number of SMP processors |
1
|
| Memory channels |
Dual-channel
|
| Memory Slots Type |
DIMM
|
| USB connector type |
USB Type-A/USB Type-C
|
| Number of memory slots |
4
|
| Supported memory clock speed (max) |
7600 MHz
|
| Power source type |
ATX
|
| Supported memory clock speeds |
4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
|
| Supported memory types |
DDR5-SDRAM
|
| Number of HDDs Supported |
4
|
| Maximum internal memory supported by processor |
192 GB
|
| Number of storage drives supported |
7
|
| Raid Levels |
0/1/10/5
|
| RAID support |
Yes
|
| Supported storage drive interfaces |
M.2,SATA III
|
| Unbuffered memory |
Yes
|
| Supported storage drive types |
HDD & SSD
|
| Ethernet LAN (RJ-45) ports |
1
|
| Battery type |
CR2032
|
| On-board graphics card |
No
|
| Supported memory module capacities |
12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
|
| ATX Power connector (24-pin) |
Yes
|
| Maximum Resolution |
4096 x 2304 pixels
|
| HDMI ports quantity |
1
|
| Parallel processing technology support |
Not supported
|
| EPS power connector (8-pin) |
Yes
|
| HDMI version |
2.1
|
| 12V power connector |
Yes
|
| Headphone outputs |
1
|
| Number of SATA III connectors |
4
|
| Total number of SATA connectors |
4
|
| USB 2.0 ports quantity |
2
|
| USB 2.0 connectors |
2
|
| CPU fan connector |
Yes
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4
|
| Front panel audio connector |
Yes
|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1
|
| Front panel connector |
Yes
|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1
|
| Audio output channels |
7.1 channels
|
| DisplayPort version |
1.2
|
| Discrete graphics support |
Yes
|
| Desktop Management Interface (DMI) version |
2.7
|
| DisplayPorts quantity |
1
|
| Number of battery cells |
1
|
| RGB LED pin header |
Yes
|
| TPM connector |
Yes
|
| Bluetooth version |
5.3
|
| Ethernet LAN |
Yes
|
| Ethernet interface type |
2.5 Gigabit Ethernet
|
| USB 3.2 Gen 2x2 Type-C ports quantity |
1
|
| Number of EATX power connectors |
2
|
| Wi-Fi |
Yes
|
| Wi-Fi standards |
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
|
| PS/2 ports quantity |
1
|
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax)
|
| S/PDIF out port |
Yes
|
| Thunderbolt headers |
2
|
| WLAN controller model |
Intel Wi-Fi 6E AX211
|
| Product colour |
Brown
|
| Products per shipping (inner) case |
1 pc(s)
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity |
1
|
| WiFi-AP antenna jack |
2
|
| HDCP |
Yes
|
| Number of M.2 (M) slots |
3
|
| PCI Express x16 (Gen 5.x) slots |
1
|
| ACPI version |
5.0
|
| BIOS memory size |
256 Mbit
|
| BIOS Type |
UEFI AMI
|
| System Management BIOS (SMBIOS) version |
2.7
|
| PCI Express X1 (Gen 3.x) Slots |
2
|
| PCI Express x16 (Gen 3.x) slots |
1
|
| PCI Express X16 (Gen 4.x) Slots |
1
|
| Clear CMOS jumper |
Yes
|
| Country of origin |
China
|
| Package depth |
270 mm
|
| Package height |
80 mm
|
| Package weight |
1807.5 g
|
| Package width |
335 mm
|
| Cables Included |
SATA
|
| Lithium weight per battery |
0.07 g
|
| Bundled software |
Norton® Internet Security (OEM version)
|
| Warranty period |
3 year(s)
|
| Antenna included |
Yes
|
| Battery Technology |
Lithium-Manganese Dioxide (LiMnO2)
|
| Batteries Included |
Yes
|
| Clear CMOS button |
Yes
|
