| Long Description |

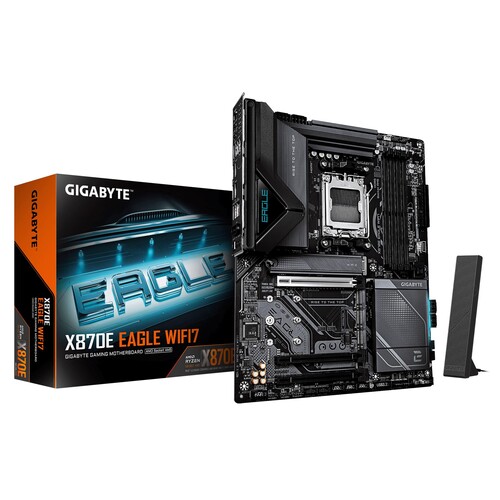

GIGABYTE X870E EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: D
|
| Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edg
|
| Bullet Points |
<ul><li>AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors</li><li>Digital twin 16+2+2 phases VRM solution</li><li>Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support</li><li>WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation</li><li>EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design</
|
| Procesora ligzda |
Socket AM5
|
| Motherboard chipset |
AMD X870E
|
| Power source type |
ATX
|
| Audio Chip |
Realtek ALC1220-VB
|
| Maximum internal memory |
256 GB
|
| Battery Capacity |
220 mAh
|
| Maximum Resolution |
4096 x 2304 pixels
|
| Number of memory slots |
4
|
| PC health monitoring |
CPU/Fan/Temperature/Voltage/Water cooling
|
| USB4 Gen 2x2 ports quantity |
2
|
| Supported memory clock speed (max) |
8200 MHz
|
| Processor manufacturer |
AMD
|
| Supported memory clock speeds |
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
|
| Component for |
PC
|
| Motherboard form factor |
ATX
|
| Bluetooth version |
5.4
|
| Number of HDDs Supported |
4
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity |
2
|
| Number of storage drives supported |
8
|
| Cooling Type |
Passive
|
| Number of SATA III connectors |
4
|
| Batteries Included |
Yes
|
| Motherboard chipset family |
AMD
|
| USB 2.0 connectors |
3
|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2
|
| Form Factor |
ATX
|
| Windows operating systems supported |
Windows 11 x64
|
| DirectX version |
12.0
|
| Processor Socket |
Socket AM5
|
| Compatible processor series |
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
|
| Supported processor sockets |
Socket AM5
|
| Supported memory types |
DDR5-SDRAM
|
| Chipset Type |
AMD X870E
|
| Memory Slots Type |
DIMM
|
| Supported RAM Technology |
DDR5-SDRAM
|
| HDMI ports quantity |
1
|
| Memory channels |
Dual-channel
|
| Ethernet interface type |
2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
|
| ECC сompatibility |
Non-ECC
|
| Wi-Fi standards |
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
|
| Number of M.2 (M) slots |
4
|
| HDMI version |
2.1
|
| PCI Express X16 (Gen 4.x) Slots |
1
|
| Unbuffered memory |
Yes
|
| Bluetooth |
Yes
|
| Maximum internal memory per slot |
64 GB
|
| ACPI version |
5.0
|
| Supported storage drive types |
HDD & SSD
|
| HDCP |
Yes
|
| Battery Technology |
Lithium-Manganese Dioxide (LiMnO2)
|
| Supported storage drive interfaces |
M.2,SATA III
|
| BIOS memory size |
256 Mbit
|
| HDCP version |
2.3
|
| System Management BIOS (SMBIOS) version |
2.7
|
| Ethernet LAN (RJ-45) ports |
1
|
| Wi-Fi |
Yes
|
| USB 2.0 ports quantity |
2
|
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be)
|
| RAID support |
Yes
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4
|
| Digital audio optical out |
1
|
| Raid Levels |
0/1/10/5
|
| Parallel processing technology support |
Not supported
|
| Audio output channels |
7.1 channels
|
| Front panel audio connector |
Yes
|
| Front panel connector |
Yes
|
| ATX Power connector (24-pin) |
Yes
|
| CPU fan connector |
Yes
|
| Headphone outputs |
1
|
| Number of battery cells |
1
|
| S/PDIF out port |
Yes
|
| Number of CPU fan connectors |
2
|
| Number of chassis fan connectors |
4
|
| EPS power connector (8-pin) |
Yes
|
| Ethernet LAN |
Yes
|
| Number of EPS power connectors (8-pin) |
2
|
| Number of water pump connectors |
2
|
| TPM connector |
Yes
|
| Product colour |
Black
|
| WLAN controller model |
Realtek RTL8922AE
|
| DisplayPort version |
1.4
|
| RGB LED pin header |
Yes
|
| Number of RGB LED pin headers |
4
|
| USB 3.2 Gen 2x2 connectors |
1
|
| WiFi-AP antenna jack |
2
|
| Line-in |
Yes
|
| Clear CMOS button |
Yes
|
| LAN controller |
Realtek RTL8126
|
| PCI Express x16 (Gen 5.x) slots |
1
|
| 1st M.2 largest key size |
25110
|
| 1st M.2 highest PCI Express generation |
5.0
|
| 2nd M.2 largest key size |
22110
|
| 2nd M.2 highest PCI Express generation |
4.0
|
| Products per shipping (inner) case |
1 pc(s)
|
| BIOS Type |
UEFI AMI
|
| Clear CMOS jumper |
Yes
|
| 3rd M.2 highest PCI Express generation |
4.0
|
| Desktop Management Interface (DMI) version |
2.7
|
| 3rd M.2 largest key size |
22110
|
| 4th M.2 highest PCI Express generation |
4.0
|
| Country of origin |
China
|
| 4th M.2 largest key size |
22110
|
| Battery weight |
3 g
|
| Lithium weight per battery |
0.07 g
|
| PCI Express x16 (Gen 3.x) slots |
1
|
| Battery type |
CR2032
|
| Antenna included |
Yes
|
| Screws included |
Yes
|
| Package width |
335 mm
|
| Bundled software |
Norton® Internet Security (OEM version)
|
| Package depth |
270 mm
|
| Package height |
80 mm
|
| Package weight |
2130 g
|
| Warranty period |
3 year(s)
|
| Unit Calculated Weight |
2 kg
|
| Units per Shipping Box |
1
|
| Unit Calculated Volume |
0.007236 cubm
|
|
