| Long Description |

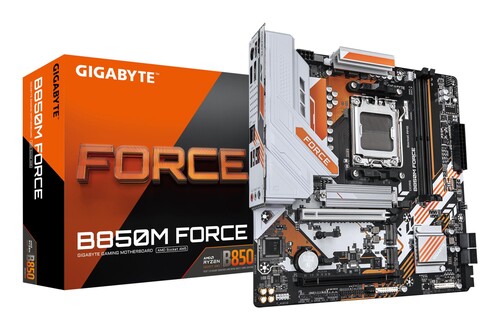

GIGABYTE B850M FORCE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR
|
| Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edg
|
| Product colour |
Dark brown
|
| Form Factor |
micro ATX
|
| Bullet Points |
<ul><li>X3D Turbo Mode to unleash new era gaming performance</li><li>AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors</li><li>Digital 8+2+2 phases VRM solution</li><li>Dual Channel DDR5: 2*DIMMs with AMD EXPO Memory Module Support</li><li>EZ-Latch: PCIe x16 Slot with Quick Release Design</li><li>Friendly UI: Multi-Theme, AIO Fan Cont
|
| Wi-Fi |
No
|
| Units per Shipping Box |
8
|
| Name |
MB AMD B850 SAM5 MATX/B850M FORCE 1.1 GIGABYTE
|
| PC health monitoring |
Fan/Temperature/Voltage/Water cooling
|
| Unit Calculated Volume |
0.007178 cubm
|
| Unit Calculated Weight |
1.35 kg
|
| Warranty period |
3 year(s)
|
| Motherboard form factor |
micro ATX
|
| Procesora ligzda |
Socket AM5
|
| USB 2.0 ports quantity |
2
|
| Motherboard chipset family |
AMD
|
| Battery weight |
3 g
|
| Component for |
PC
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity |
1
|
| Processor Socket |
Socket AM5
|
| Compatible processor series |
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
|
| Supported processor sockets |
Socket AM5
|
| Package width |
270 mm
|
| Supported memory types |
DDR5-SDRAM
|
| PCI Express x16 (Gen 5.x) slots |
1
|
| HDMI version |
2.1
|
| Package weight |
1400 g
|
| Memory Slots Type |
DIMM
|
| Package height |
68 mm
|
| Memory channels |
Dual-channel
|
| Package depth |
268 mm
|
| Cooling Type |
Passive
|
| ECC сompatibility |
Non-ECC
|
| Number of storage drives supported |
7
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1
|
| Supported memory clock speeds |
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9200/9600 MHz
|
| Supported memory clock speed (max) |
9600 MHz
|
| Chipset Type |
AMD B850
|
| Number of memory slots |
2
|
| Products per shipping (inner) case |
1 pc(s)
|
| Supported RAM Technology |
DDR5-SDRAM
|
| Power source type |
ATX
|
| Unbuffered memory |
Yes
|
| Maximum internal memory per slot |
64 GB
|
| Maximum internal memory |
128 GB
|
| Supported storage drive types |
HDD & SSD
|
| Supported storage drive interfaces |
M.2,PCI Express 4.0,PCI Express 5.0,SATA III
|
| Audio output channels |
7.1 channels
|
| RAID support |
Yes
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2
|
| Raid Levels |
0/1/10/5
|
| Parallel processing technology support |
Not supported
|
| Battery type |
CR2032
|
| Maximum Resolution |
4096 x 2160 pixels
|
| Processor manufacturer |
AMD
|
| Batteries Included |
Yes
|
| Ethernet LAN (RJ-45) ports |
1
|
| USB 2.0 connectors |
2
|
| PCI Express X16 (Gen 4.x) Slots |
1
|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2
|
| Unit Width |
7 cm
|
| Number of SATA III connectors |
4
|
| Unit Depth |
27 cm
|
| Front panel audio connector |
Yes
|
| Motherboard chipset |
AMD B850
|
| Number of HDDs Supported |
4
|
| Unit Height |
27 cm
|
| Audio Chip |
Realtek ALC897
|
| Front panel connector |
Yes
|
| ATX Power connector (24-pin) |
Yes
|
| CPU fan connector |
Yes
|
| Number of CPU fan connectors |
2
|
| DisplayPorts quantity |
1
|
| Ethernet LAN |
Yes
|
| EPS power connector (8-pin) |
Yes
|
| Number of EPS power connectors (8-pin) |
1
|
| 12V power connector |
Yes
|
| DirectX version |
12.0
|
| HDMI ports quantity |
1
|
| Number of water pump connectors |
2
|
| TPM connector |
Yes
|
| RGB LED pin header |
Yes
|
| Number of RGB LED pin headers |
4
|
| Number of chassis fan connectors |
2
|
| PS/2 ports quantity |
1
|
| DisplayPort version |
1.4
|
| Number of battery cells |
1
|
| Line-in |
Yes
|
| Battery Technology |
Lithium-Manganese Dioxide (LiMnO2)
|
| Headphone outputs |
1
|
| Microphone in |
Yes
|
| HDCP |
Yes
|
| Ethernet interface type |
2.5 Gigabit Ethernet
|
| Number of M.2 (M) slots |
3
|
| 1st M.2 largest key size |
2280
|
| LAN controller |
Realtek RTL8125
|
| 1st M.2 highest PCI Express generation |
5.0
|
| 2nd M.2 largest key size |
2280
|
| 2nd M.2 highest PCI Express generation |
4.0
|
| 3rd M.2 largest key size |
2280
|
| 3rd M.2 highest PCI Express generation |
4.0
|
| BIOS Type |
UEFI AMI
|
| BIOS memory size |
256 Mbit
|
| ACPI version |
5.0
|
| Clear CMOS jumper |
Yes
|
| Desktop Management Interface (DMI) version |
2.7
|
| System Management BIOS (SMBIOS) version |
2.7
|
| Screws included |
Yes
|
| Lithium weight per battery |
0.07 g
|
| Country of origin |
China
|
| Windows operating systems supported |
Windows 10 x64/Windows 11 x64
|
| Bundled software |
Norton® Internet Security (OEM version)
|
|
